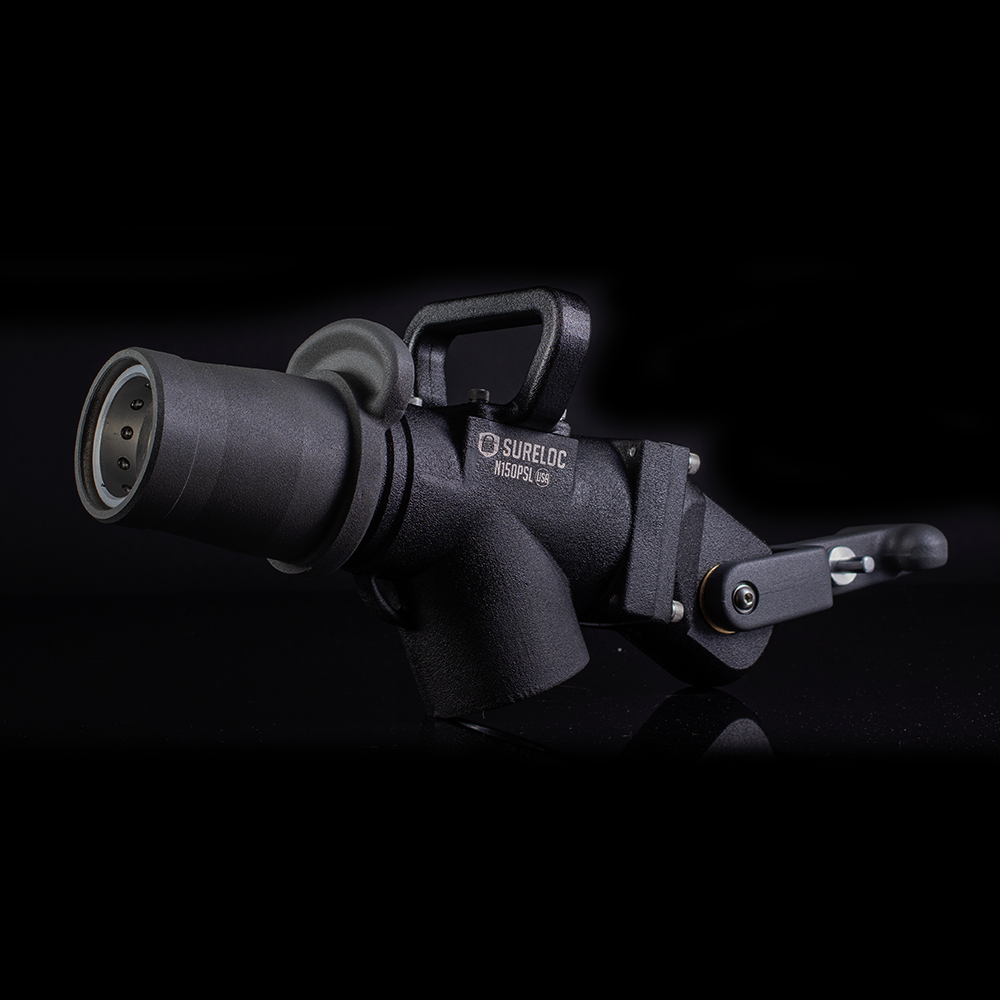

Piston Sureloc N150PSLp

Description

The SureLoc diesel fuel nozzle has proven reliable even in the harshest environments and is customizable to meet specific needs. Its durable, all-metal construction and thick wall housing makes it optimal for heavy duty operations. The latching mechanism consists of twelve, stainless steel ball bearings for a secure connection. Available with two flow rates and inlet options, it is our most versatile nozzle.

• 12 stainless steel ball latching mechanism
• Thicker walls for increased durability
• 1 1/2″ or 2″ inlet options
• Powder coated non-slip finish

 [ VIEW PDF ]

Variations
2″ Fuel Inlet NI5OPSLp-2
Arctic Nozzle N150PSL-ARTCp
(2” High Flow 800 LPM N15OPSL800p)

Technical Data
All technical data based upon tests performed by the Fast Fill Systems Engineering Department.

• Max Operating Pressure 8.6 BAR / 125 PSI
• Max Flow Rate 567 LPM / 150 GPM (800 Series 800 LPM/211 GPM)
• Min Flow Rate 95 LPM / 25 GPM (800 Series 567 LPM/150 GPM)
• Fuel Inlet Threads 1.1/2″ NPT (800 Series 2” NPT
• Weight 3.1 KG / 6.8 LBS
• Latching Mechanism Ball Bearing

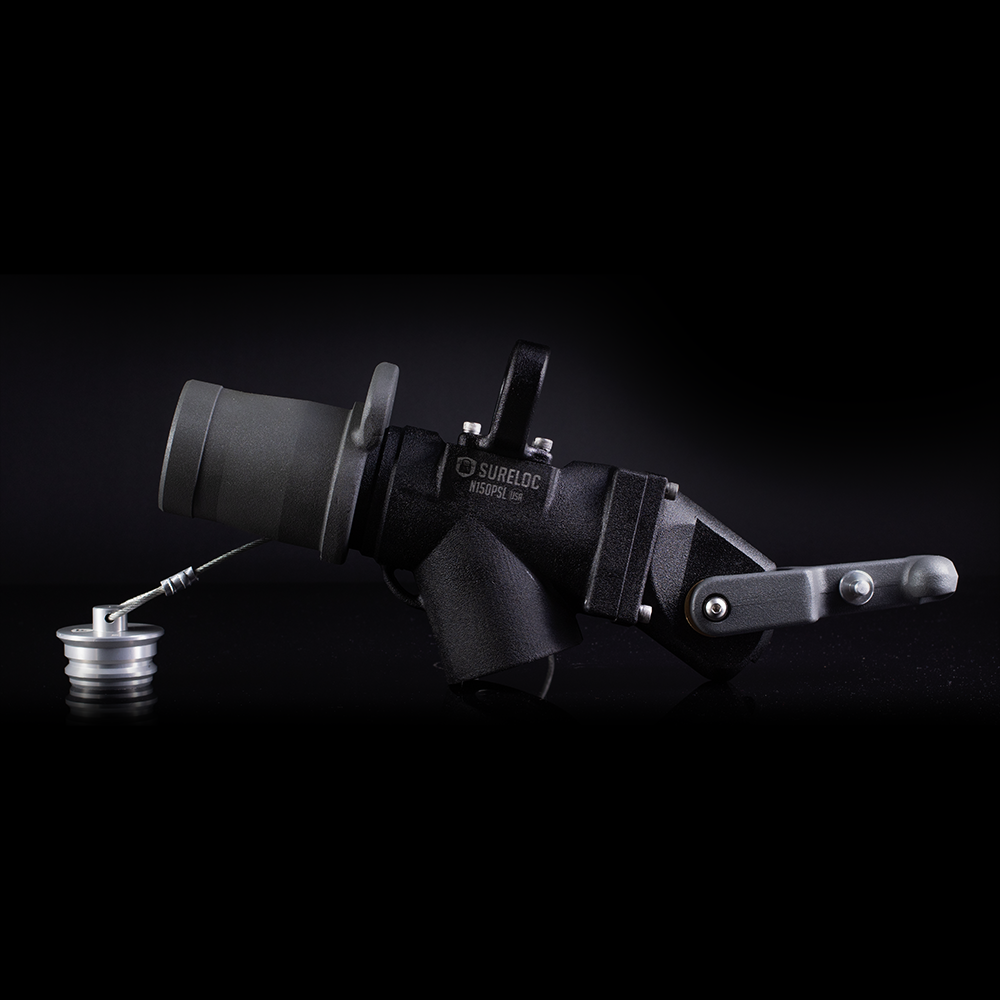

Front End Plug
P150 - Sureloc
Keeps the latching mechanism of the nozzle clean from dirt and grime for fast, clean coupling
