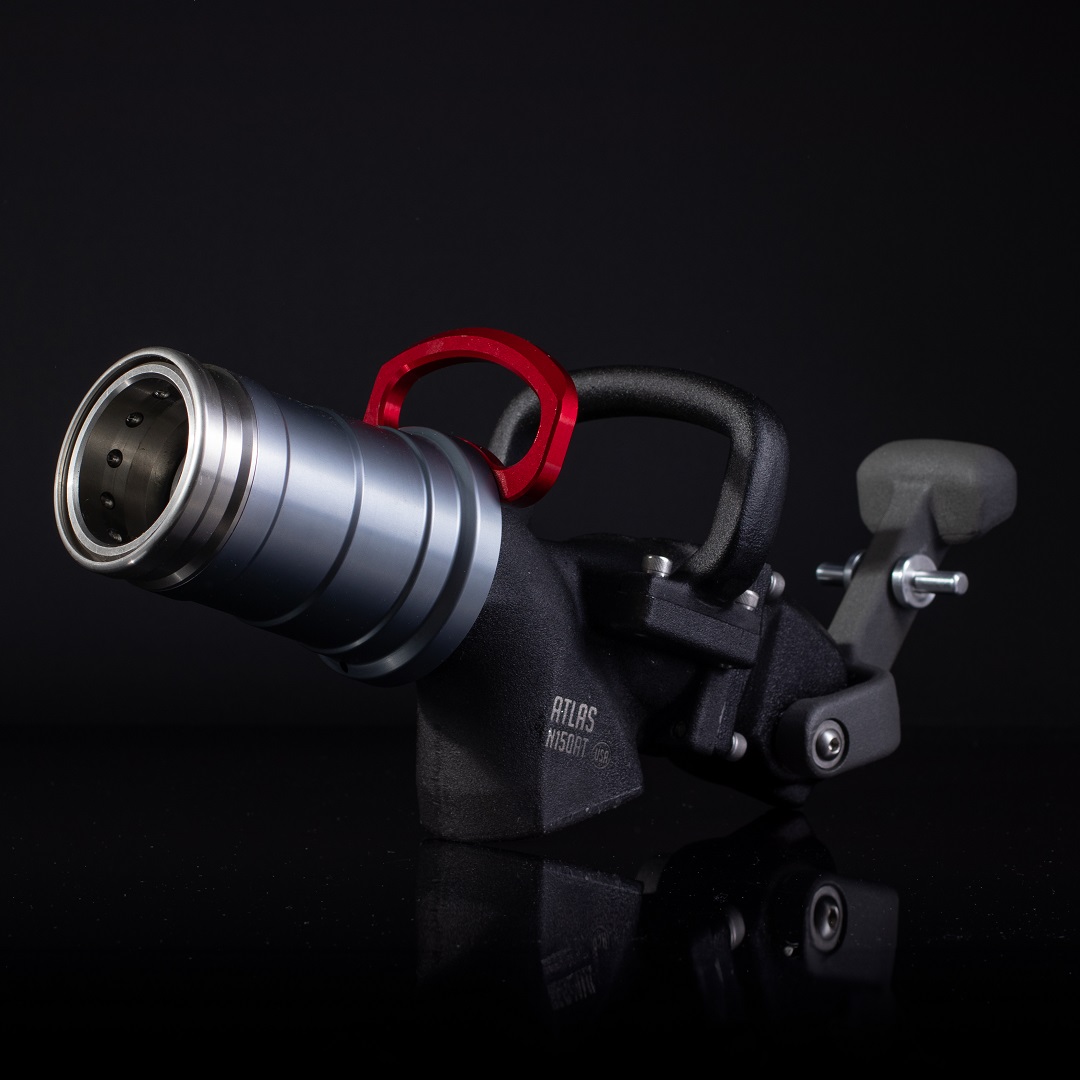

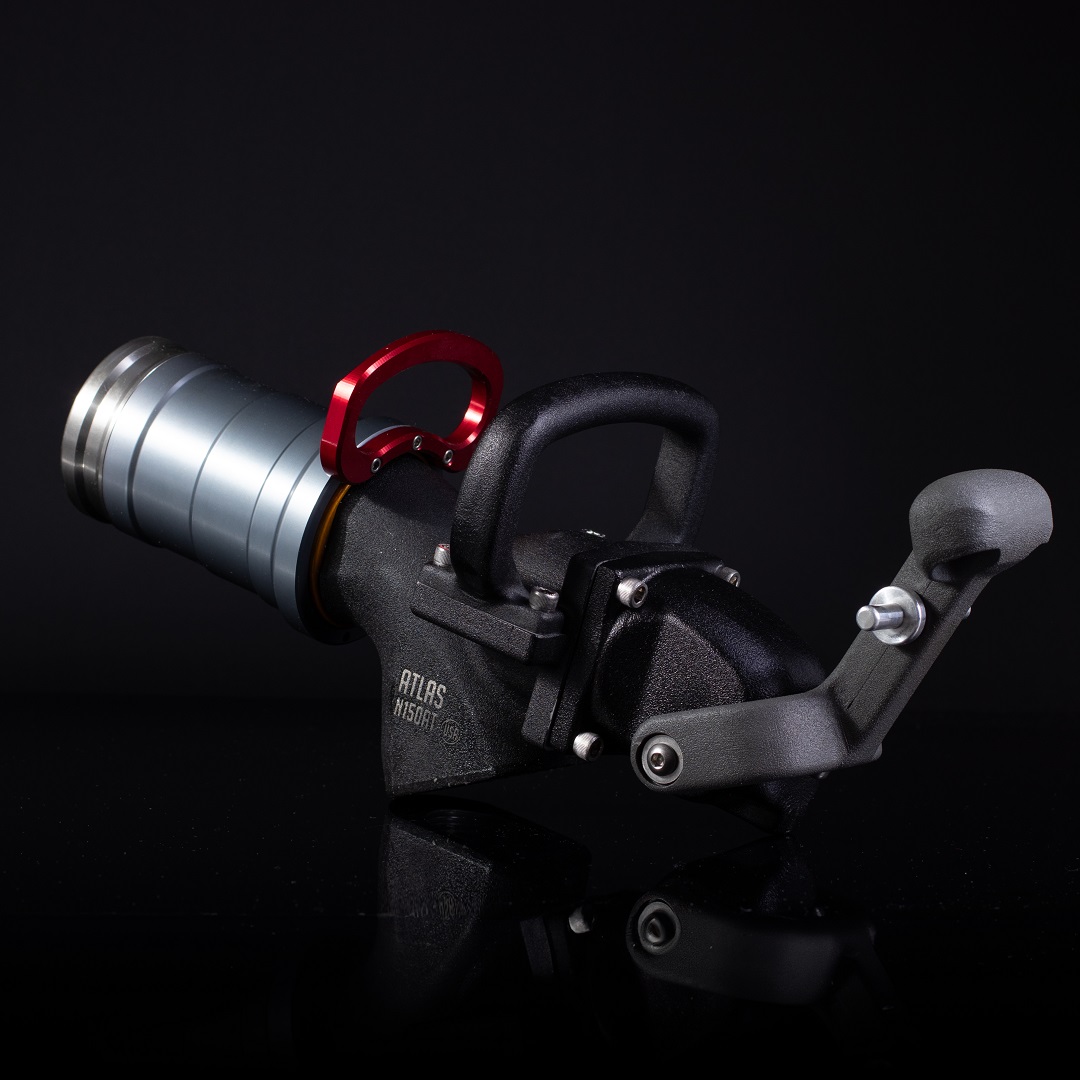

Titan N150Tp

Description

The Titan diesel fuel nozzle blends elements from the Pitboss fuel nozzle with a smaller design to create the most compact, lightest diesel fuel nozzle in the industry. In addition to the Elastodog latching mechanism and piston-driven shutoff, the field replaceable piston cartridge allows the end-user to bring a worn nozzle back to life.

• Compact/lightweight design
• Elastodog plastic latching teeth
• Powder coated for non-slip grip
• Field replaceable backend cartridge

 [ VIEW PDF ]

Cartridge
Repair Cartridge N150TRC

Technical Data
All technical data based upon tests performed by the Fast Fill Systems Engineering Department.

• Max Operating Pressure 8.6 BAR / 125 PSI
• Max Flow Rate 567 LPM / 150 GPM
• Min Flow Rate 95 LPM / 25 GPM
• Fuel Inlet Threads 1-1/2″ NPT
• Weight 2.6 KG / 5.6 LBS
• Latching Mechanism Elastodog Clips

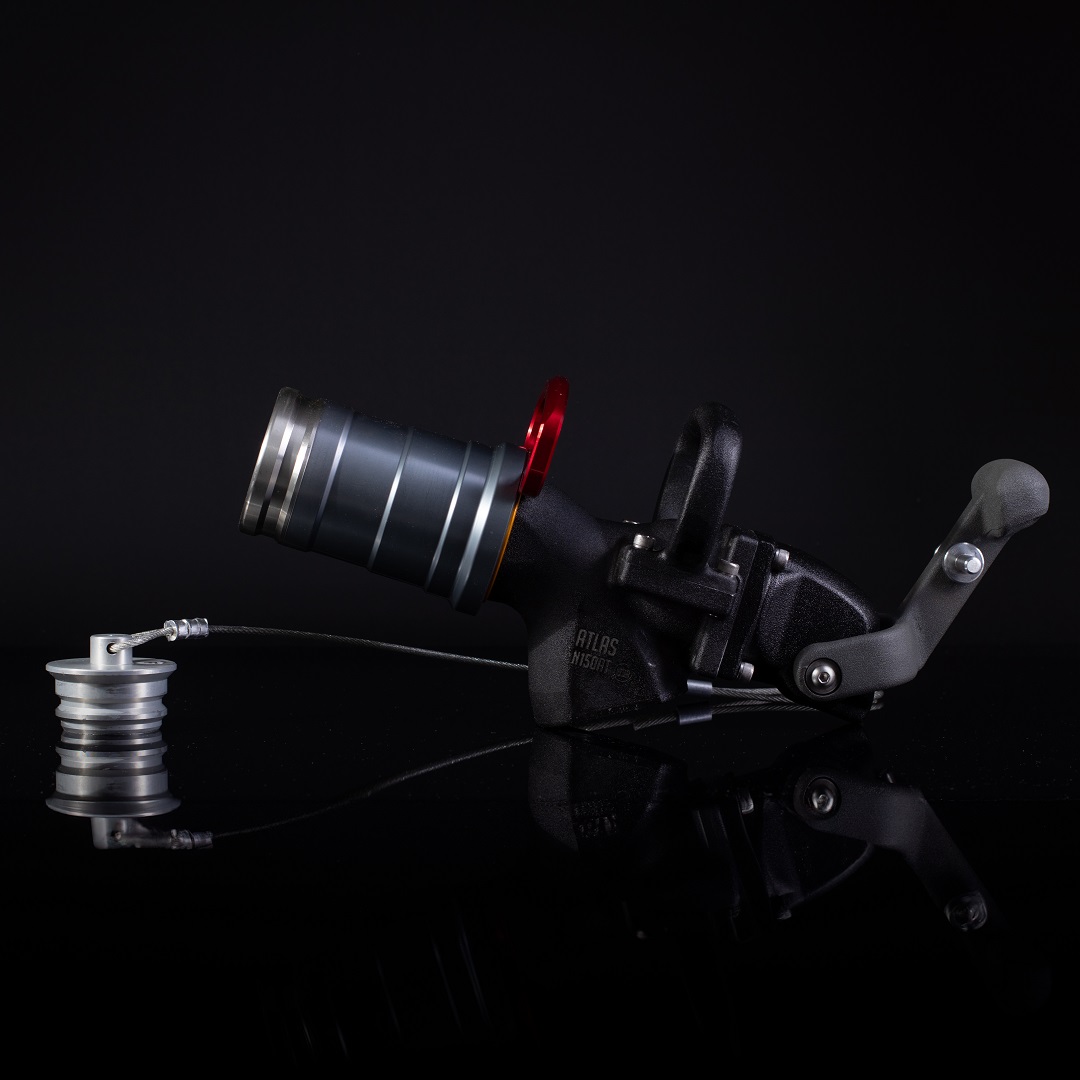

Front End Plug
P150T - Titan
Keeps the latching mechanism of the nozzle clean from dirt and grime for fast, clean coupling
